Manufacturer
Brother Replacement Parts

Model Number

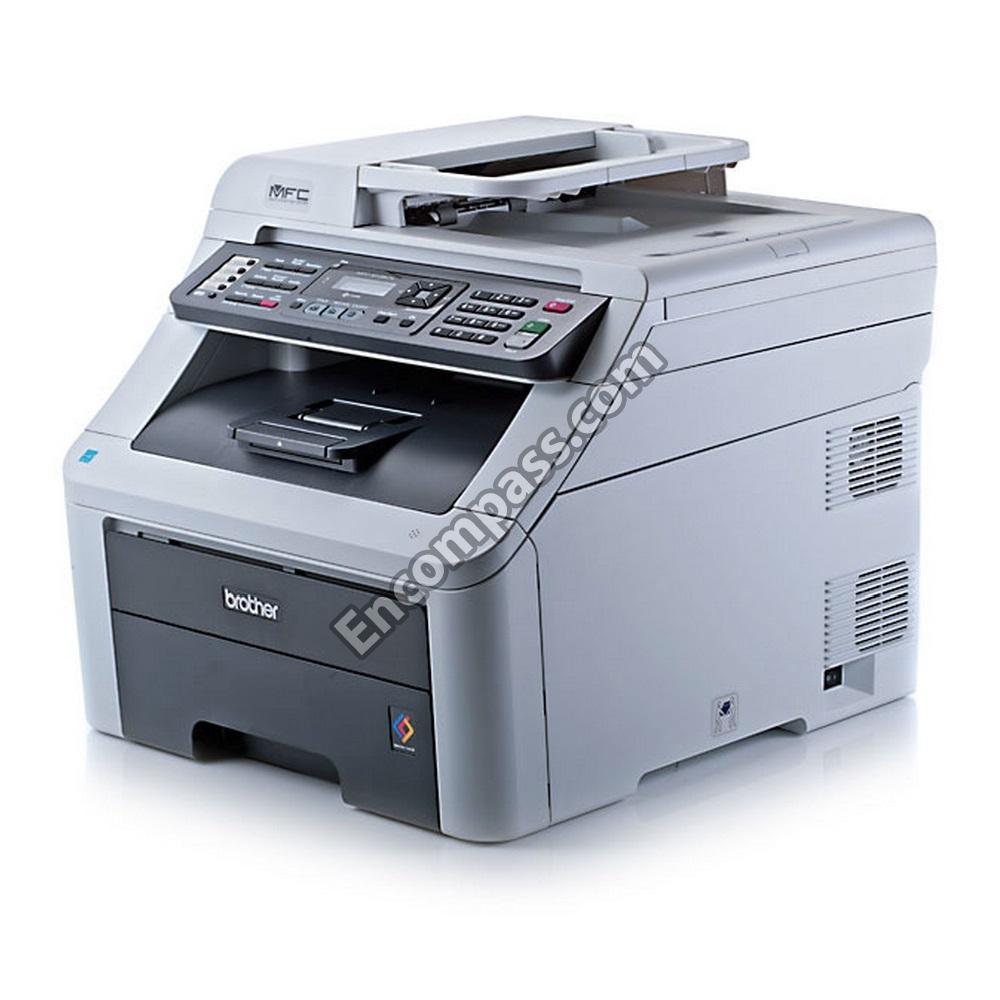

MFC9125CN

Description
Digital Color All-in-one With Networking

Parts List

CategoryPart NumberDescriptionDemandAvailability
BagLG4400001
Brother Ac Cord Bag Assy Lf Ul/csa For Us/canNo
LabelLS8119001
Brother Address Label, Mfc9120cn/mfc9320cwNo
LF9081001
Brother Adf MotorNo
Circuit BoardLT0722001
Brother Adf Sensor Pcb AssyNo
LS8311001
Brother Adf Unit(sp)No
BatteryLG6167001
Brother Battery Assy, Mfc9120cn/mfc9320cwNo
Belt, PulleyLU5227001
Brother Belt Drive UnitNo
LU4163001
Brother Brother Emblem, Mfc9320cw/mfc9325cwNo
LS8345001
Brother Carton Brother, Mfc9010cn For UsNo
LS8244001
Brother Carton Brother, Mfc9120cn For UsNo
LS8275001
Brother Carton Brother, Mfc9320cw For UsNo
LS8173001
Brother Cdrom Assy, Mfc9010cn For Us/can/bra (Windows)No
LS8668001
Brother Cdrom Assy, Mfc9010cn For Us/can/bra (Windows/macintosh)No
LS8161001
Brother Cdrom Assy, Mfc9320cw For Us/can/bra (Macintosh)No
LS8171001
Brother Cdrom Assy, Mfc9320cw For Us/can/bra (Windows)No
Pump, MotorLU5123001
Brother Develop Drive MotorNo
Circuit BoardLV0188001
Brother Develop Release Sensor Pcb AssyNo
FrameLS0536001
Brother Drive Frame AssyNo
Drum, TubLU6123001
Brother Drum Cleaning Sheet Kit (Sp)No
Drum, TubLU5115001
Brother Drum Develop Drive UnitNo
Pump, MotorLT1028001
Brother Drum Motor Origin Sensor Pcb AssyNo
Circuit BoardLV0141001
Brother Eject Rear Sensor Pcb AssyNo
LF6577001
Brother Ejection Roller AssyNo
Circuit BoardLV0148001
Brother Engine Pcb AssyNo
LE8842001
Brother Ext Cap, Mfc9120cn/mfc9125cn/mfc9320cw/mfc9325cw ForNo
Cover,CapLS8044001
Brother Front CoverNo
Cover,CapLS8158001
Brother Front Cover Top, Dcp9010cn/mfc9010cn/mfc9120cn/mfc9125cnNo
Cover,CapLS8215001
Brother Front Cover Top, Mfc9320cwNo
Cover,CapLU5428001
Brother Fuser Cover AssyNo
Fuse, Thermal Fuse, BreakerLU5796001
Brother Fuser Unit 115V (Sp) For Us/can/braNo
Circuit BoardLV0146001
Brother High-voltage Power Supply Pcb AssyNo
HingeLS3329001
Brother Hinge Assy LNo
HingeLS8154001
Brother Hinge RNo
HingeLS8155001
Brother Hinge R SupportNo
HolderLU6238001
Brother Holder Hook *1No
SpringLR0910001
Brother Hook Spring Bc10No
Circuit BoardLV0149001
Brother Hvps Control Pcb AssyNo
Cover,CapLS8147001
Brother Joint Cover Sub Assy, Mfc9120cn/mfc9320cwNo
LU5831001
Brother Led Assy (Sp)No
Circuit BoardLV0441001
Brother Led Head Control Pcb AssyNo
Circuit BoardLT0886001
Brother Led Power Relay Pcb AssyNo
LF6579001
Brother Lf Roller AssyNo
LF6148001
Brother Lock ClawNo
Circuit BoardLT0748001
Brother Low-voltage Power Supply Pcb Assy For Us/can/braNo
LU5202001
Brother Main Fan AssyNo
Circuit BoardLT0711001
Brother Main Pcb, Dcp9010cn/mfc9010cnNo
Circuit BoardLT0711051
Brother Main Pcb, Mfc9010cn For Us (*)No
Circuit BoardLT0710004
Brother Main Pcb, Mfc9120cnNo
Circuit BoardLT0710051
Brother Main Pcb, Mfc9120cn For Us (*)No
Circuit BoardLT0710001
Brother Main Pcb, Mfc9120cn For Us/canNo
Circuit BoardLT0709051
Brother Main Pcb, Mfc9320cw For Us (*)No
Circuit BoardLT0709001
Brother Main Pcb, Mfc9320cw For Us/canNo
Tray, Support , Ice Maker TrayLU5442001
Brother Manual Paper Tray Assy, Dcp9010cn/mfc9010cn/mfc9120cnNo
LU5442002
Brother Manual Paper Tray Assy, Mfc9320cw/mfc9325cwNo
Circuit BoardLT0867001
Brother Ncu Pcb Assy, Mfc9120cn/mfc9125cn/mfc9320cw/mfc9325cw For UsNo
Circuit BoardLG6190005
Brother Ncu Pcb Assy, Mfc9120cn/mfc9320cw For Chn/arg/chl/sgp/indNo
LS8129001
Brother Option CartonNo
PadLS8467001
Brother Pad ANo
PadLS8468001
Brother Pad AbNo
Circuit BoardLT0715001
Brother Panel Pcb Assy, Mfc9120cn/mfc9125cn/mfc9320cw/mfc9325cw ExceptNo
ActuatorLU5187001
Brother Paper Eject ActuatorNo
ActuatorLU5189001
Brother Paper Eject Actuator SpringNo
ActuatorLU5188001
Brother Paper Eject Actuator TopNo
Pump, MotorLU5160001
Brother Paper Feed Motor AssyNo
LU5294001
Brother Paper Feed UnitNo
KitLU6068001
Brother Paper Feeding Kit (Sp)No
Tray, Support , Ice Maker TrayLU5347001
Brother Paper Tray Unit, Dcp9010cn/mfc9010cn/mfc9120cnNo
Tray, Support , Ice Maker TrayLU5347002
Brother Paper Tray Unit, Mfc9320cw/mfc9325cwNo
BagUE1688001
Brother Pe Bag 1000X1000hNo
PadLS8719001
Brother Polystyrene Pad AssyNo
UL9037001
Brother Pt Sensor HolderNo
GuideLS8064001
Brother Pull Arm GuideNo
LS8062001
Brother Pull Arm LNo
LS8063001
Brother Pull Arm RNo
PadLS8136001
Brother Pull Arm Spring Adf LNo
SpringLS0895001
Brother Pull Arm Spring Adf RNo
GuideLS8431001
Brother Quick Setup Guide, Mfc9010cn For Us/canNo
GuideLS8243001
Brother Quick Setup Guide, Mfc9120cn For Us/canNo
GuideLS8279001
Brother Quick Setup Guide, Mfc9320cw For Us/canNo
RollerLU5311001
Brother Roller Holder AssyNo
PadLU5114001
Brother Rubber FootNo
ScannerLS8312001
Brother Scanner Unit(sp)No
Screw000300416
Brother Screw Bind M3x4No
ShaftLS8090001
Brother Separate Roller Shaft AssyNo
PadLU5669001
Brother Separation Pad AssyNo
RubberLS0978001
Brother Separation Rubber AssyNo
ScrewLM3856001
Brother Shoulder ScrewNo
FrameLU5169001
Brother Side Frame RNo
SpacerLU6330001
Brother SpacerNo
LU5694001
Brother Taptite Bind B M3x10No
085310816
Brother Taptite Bind B M3x8No
LU5693001
Brother Taptite Bind B M4x12No
085320616
Brother Taptite Bind S M3x6No
Screw087311016
Brother Taptite Cup B M3x10No
Cup087310816
Brother Taptite Cup B M3x8No
Cup087321217
Brother Taptite Cup S M3x12No
CupLU5691001
Brother Taptite Cup S M3x6 SrNo
Z07200001
Brother Taptite Pan (S/p W) B M3x10No
LG3077001
Brother Telephone Line Cord Csa, Mfc9120cn/mfc9125cn/mfc9320cw/mfc9325cw ForNo
UG3290001
Brother Telephone Line Cord, Mfc9120cn/mfc9320cw For Arl/nzNo
Circuit BoardLV0152001
Brother Toner Led Pcb AssyNo
Circuit BoardLV0137001
Brother Toner/new Sensor Pcb AssyNo
Cover,CapLS8131001
Brother Top Cover Arm LNo
Cover,CapLS8132001
Brother Top Cover Arm RNo
LJ9803001
Brother Usb Cable 2.0No
Circuit BoardLV0261001
Brother Usb Host Relay Pcb Assy, Mfc9320cw/mfc9325cwNo
GuideLS8315001
Brother User's Guide, Mfc9010cn For Us/canNo
GuideLS8239001
Brother User's Guide, Mfc9120cn/mfc9320cw For Us/canNo
LM9221001
Brother Waste Toner SensorNo
Circuit BoardLT0963001
Brother Wireless Lan Pcb Assy, Mfc9320cw/mfc9325cwNo
LU6063001
Brother Z Spring RNo
