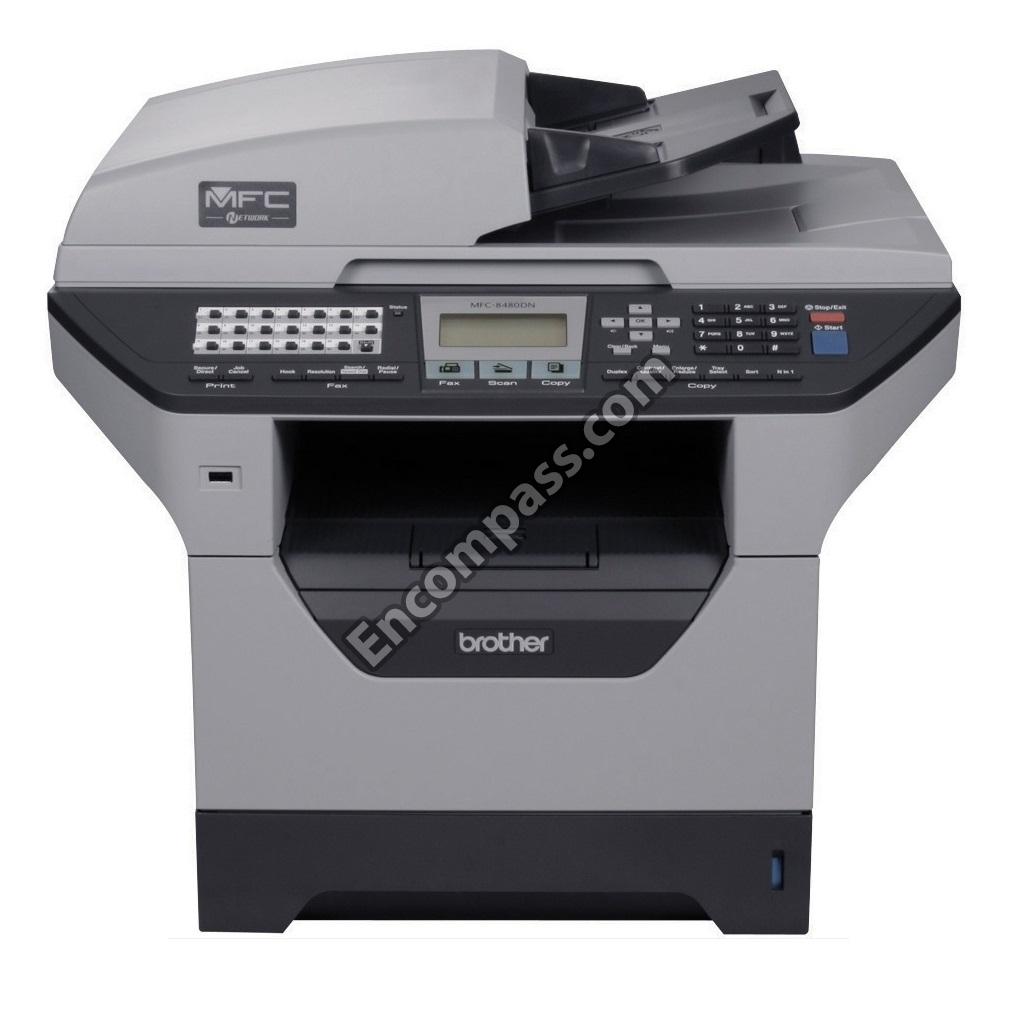

MFC8480DN Brother High-performance Laser All-in-one With Networking And Duplex Printing Replacement Parts
Manufacturer
Model Number
MFC8480DN
Description
High-performance Laser All-in-one With Networking And Duplex Printing
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
| LX2235001 | Brother (R) Cd Rom Win 7 Alefb Mfc8480dn | No | ||
| Bag | LG4400001 | Brother Ac Cord Bag Assy Lf Ul/csa, Dcp8080dn/dcp8085dn/mfc8480dn/ Mfc8680dn | No | |
| Bag | LV0421001 | Brother Ac Cord Bag Assy Lf Ul/csa, Mfc8690dw/mfc8890dw For Us/can | No | |
| LM5273001 | Brother Access Cover, Gray(1736) | No | ||
| LF9683001 | Brother Actuator Front1 | No | ||
| Actuator | LF9748001 | Brother Actuator Front2, | No | |
| LF9671001 | Brother Actuator R | No | ||
| LF9742001 | Brother Actuator Sb, | No | ||
| Label | LF9717002 | Brother Address Label, Mfc8480dn/mfc8680dn/mfc8690dw/mfc8880dn/ | No | |
| Deflector & Chute | LS7297001 | Brother Adf Chute Assy Dx, | No | |
| Deflector & Chute | LS7296001 | Brother Adf Chute Assy Sx, Dcp8080dn/mfc8480dn | No | |
| LF9754001 | Brother Adf Cover Assy Dx, | No | ||
| LF9700001 | Brother Adf Cover Assy Sx, Dcp8080dn/mfc8480dn | No | ||
| LS7325001 | Brother Adf Emblem, | No | ||
| LS7326001 | Brother Adf Emblem, Dcp8080dn/dcp8085dn | No | ||
| LS7323001 | Brother Adf Emblem, Mfc8690dw/mfc8890dw | No | ||
| LE2470001 | Brother Adf Film | No | ||
| LT0946001 | Brother Adf Harness Assy Alefb Dx, Dcp8085dn/mfc8680dn/ | No | ||
| LT0948001 | Brother Adf Harness Assy Alefb Sx, Dcp8080dn/mfc8480dn | No | ||
| LE8688001 | Brother Adf Motor | No | ||
| Circuit Board | LG6537002 | Brother Adf Relay Pcb, | No | |
| LG6537001 | Brother Adf Relay Pcb, Dcp8080dn/mfc8480dn | No | ||
| Cover,Cap | LS7258001 | Brother Adf Side Cover F | No | |
| LF9697001 | Brother Adf Side Cover R | No | ||
| LS7633001 | Brother Adf Unit Lgl Dx (Sp), | No | ||
| LS7634001 | Brother Adf Unit Lgl Sx (Sp), Dcp8080dn/mfc8480dn | No | ||
| Duct, Vent | LM6655001 | Brother Air Duct Assy Al | No | |
| LP2357001 | Brother Alfb Unit Assy(sp) | No | ||
| Cover,Cap | LU7046001 | Brother Back Cover | No | |
| LG6550001 | Brother Back Light Module | No | ||
| LP2907001 | Brother Back Sheet Adf | No | ||
| LG5921001 | Brother Battery Assy | No | ||
| Belt, Pulley | LE8642001 | Brother Belt | No | |
| TN650PC | Premium Compatibles Black Toner Printer Cartridge Replacement 8K Avg. Yield | In Stock In stock 13.95 | ||
| Cover,Cap | LS7306001 | Brother Brother Emblem Cover Assy, | No | |
| LS7444001 | Brother Carton Brother, Dcp8080dn For Us | No | ||
| LS7453001 | Brother Carton Brother, Dcp8085dn For Us | No | ||
| LS7489001 | Brother Carton Brother, Mfc8480dn For Us | No | ||
| LX2017001 | Brother Carton Brother, Mfc8680dn For Us | No | ||
| LX2695001 | Brother Carton Brother, Mfc8690dw For Us | No | ||
| LS7480001 | Brother Carton Brother, Mfc8890dw For Us | No | ||
| Module | LF2037001 | Brother Ccd Module(sp) | No | |
| LS7421001 | Brother Cd-rom Assy, | No | ||
| LX2286001 | Brother Cd-rom Assy, Dcp8080dn For Us/can/arg/bra (Windows/macintosh) | No | ||
| LS7999001 | Brother Cd-rom Assy, Mfc8680dn For Us (Macintosh) | No | ||
| LS7998001 | Brother Cd-rom Assy, Mfc8680dn For Us (Windows) | No | ||
| LX2699001 | Brother Cd-rom Assy, Mfc8690dw For Us (Windows/macintosh) | No | ||
| LJ9945001 | Brother Connector | No | ||
| Gear, Wheel | LM5043001 | Brother Dev Gear 37R Joint Drive | No | |
| LU7214001 | Brother Develop Joint | No | ||
| Cover,Cap | LS7294001 | Brother Document Cover Lgl Sub Assy | No | |
| Cover,Cap | LG3218001 | Brother Document Cover Sensor | No | |
| LF9647001 | Brother Document Ejection Tray | No | ||
| LE8834001 | Brother Document Hold Assy | No | ||
| Spring | LF2026001 | Brother Document Hold Spring | No | |
| Drive | LM5079001 | Brother Drive Release Cam | No | |
| Drive | LM5080001 | Brother Drive Release Link | No | |
| LG6531001 | Brother Driver Pcb Assy | No | ||
| Drum, Tub | LU7653001 | Brother Drum Cleaning Sheet Kit | No | |
| LU7503001 | Brother Dx Feed Assy A4 For Ger/uk/fra/bel/nld/che/aus/ita/ | No | ||
| LM5209001 | Brother Dx Feed Assy Ltr For Us/can/phl/arg/chl/bra | No | ||
| Gear, Wheel | LM5051001 | Brother Dx Gear 15 Tray Drive | No | |
| LM5132001 | Brother Edge Actuator | No | ||
| LM5133001 | Brother Edge Actuator Spring | No | ||
| Roller | LU7154001 | Brother Eject Pinch Roller M | No | |
| Roller | UL6244002 | Brother Ejection Roller B4 | No | |
| LM5011001 | Brother Ejector Solenoid | No | ||
| LF9692001 | Brother Exit Chute Cover Assy | No | ||
| Roller | LF9673001 | Brother Exit Roller Assy | No | |
| LE8842001 | Brother Ext Cap, | No | ||
| Fan Motor | LU7032001 | Brother Fan Motor 60 Unit | No | |
| LM5114001 | Brother Fan Motor 60 Unit Lv | No | ||
| LF9629001 | Brother Ffc Cable Assy | No | ||
| Filter | LU7141001 | Brother Filter Assy | No | |
| LF9743001 | Brother Flap Assy, Dcp8085dn/mfc8680dn/mfc8690dw/mfc8880dn/ | No | ||
| LJ9940001 | Brother Front Cover Sw Assy | No | ||
| Label | LU7303001 | Brother Fuser Caution Label | No | |
| LM5048001 | Brother Fuser Gear 39 H/r Drive | No | ||
| Fuse, Thermal Fuse, Breaker | LU8233001 | Brother Fuser Unit 115V (Sp) For Us/can/bra | In Stock In stock 196.95 | |
| Fuse, Thermal Fuse, Breaker | LU8236001 | Brother Fuser Unit 230V (Sp) For Ger/uk/fra/bel/nld/che/aus/ | No | |
| LM5245001 | Brother Gear 15 | No | ||
| Gear, Wheel | LM5102001 | Brother Gear 17 Feed Roller Drive | No | |
| Gear, Wheel | LM5104001 | Brother Gear 17 Mp Roller Drive | No | |
| Gear, Wheel | LM5103001 | Brother Gear 20 T1 Roller Drive | No | |
| LM5246001 | Brother Gear 21-16 | No | ||
| LJ9978001 | Brother High-voltage Ps Pcb Assy | No | ||
| Hinge | LS7497001 | Brother Hinge Arm R | No | |
| LF9703001 | Brother Hinge Assy L | No | ||
| Hinge | LE6245001 | Brother Hinge Base R | No | |
| Cover,Cap | LS7239001 | Brother Joint Cover Assy, Gray(1581), | No | |
| Cover,Cap | LS7307001 | Brother Joint Cover Assy, Gray(1581), | No | |
| LJ0908001 | Brother Laser Caution Label Except For Chn | No | ||
| LU7176001 | Brother Laser Unit (Sp) | No | ||
| LF9709001 | Brother Lcd Cover | No | ||
| A62006001 | Brother Lcd Except For Chn | No | ||
| Holder | LM4267001 | Brother Led Holder | No | |
| Roller | LP2448001 | Brother Lf Roller1 Assy | No | |
| Roller | LS0761001 | Brother Lf Roller2 Assy | No | |
| LF9675001 | Brother Lf Roller3 Assy | No | ||
| LF9677001 | Brother Lf Roller4 Assy | No | ||
| Spring | LE2472001 | Brother Lf Spring | No | |
| LP2347001 | Brother Lf4 Film | No | ||
| LM5247001 | Brother Lift Gear 46 | No | ||
| LF2004001 | Brother Lock Lever Assy | No | ||
| Lever | LE8649001 | Brother Lock Lever B | No | |
| Deflector & Chute | LF9741001 | Brother Lower Main Chute Assy, | No | |
| LF9669001 | Brother Lower Main Chute Assy, Dcp8080dn/mfc8480dn | No | ||
| Frame | LX2517001 | Brother Main Frame L Unit | No | |
| LM5047001 | Brother Main Motor Assy Al | No | ||
| Circuit Board | LT0755001 | Brother Main Pcb Assy, Dcp8080dn | No | |
| Circuit Board | LT0754001 | Brother Main Pcb Assy, Mfc8480dn For Us/can | No | |
| Circuit Board | LT0753001 | Brother Main Pcb Assy, Mfc8680dn | No | |
| Circuit Board | LT0673001 | Brother Main Pcb Assy, Mfc8690dw/mfc8890dw For Us/can | No | |
| Circuit Board | LT0673004 | Brother Main Pcb Assy, Mfc8890dw Except For Us/can | No | |
| LJ9999001 | Brother Mp Pe Sensor Assy | No | ||
| Holder | LU7184001 | Brother Mp Roller Holder Assy | No | |
| Holder | LU7339001 | Brother Mp Roller Holder Sp Assy | No | |
| Spring | LM6490001 | Brother Mp Separation Spring | No | |
| LM5062001 | Brother Mp Solenoid Assy | No | ||
| Cover,Cap | LS7004001 | Brother Mp Tray Cover Assy, | No | |
| Cover,Cap | LS7305001 | Brother Mp Tray Cover Assy, | No | |
| Circuit Board | LT0867001 | Brother Ncu Pcb Assy, | No | |
| Circuit Board | LG6190005 | Brother Ncu Pcb Assy, Mfc8480dn/mfc8890cw For Arg/chl, | No | |
| LM5085001 | Brother New Toner Actuator | No | ||
| LM5086001 | Brother New Toner Actuator Spring | No | ||
| Deflector & Chute | LU7047001 | Brother Outer Chute Assy | No | |
| Cover,Cap | LS7309001 | Brother Panel Cover Assy, Dcp8080dn For Us/can | No | |
| Cover,Cap | LS7316001 | Brother Panel Cover Assy, Mfc8480dn For Us/can | No | |
| Cover,Cap | LX2013001 | Brother Panel Cover Assy, Mfc8680dn For Us | No | |
| Circuit Board | LT0695001 | Brother Panel Pcb Assy, Mfc8480dn/mfc8680dn/mfc8690dw/mfc8880dn/ | No | |
| Panel | LS7247001 | Brother Panel Unit, | No | |
| Deflector & Chute | LF9747001 | Brother Paper Feed Chute Assy, | No | |
| LF9681001 | Brother Paper Feed Chute Assy, Dcp8080dn/mfc8480dn | No | ||
| Lever | LU7312001 | Brother Paper Stack Lever Sp Assy | No | |
| Tray, Support , Ice Maker Tray | LU7198001 | Brother Paper Tray Unit For Us/can/phl/arg/chl/bra/ind | No | |
| Actuator | LU7935001 | Brother Pe Actuator Assy | No | |
| LM5171001 | Brother Pe Actuator Mp | No | ||
| Actuator | LU0027001 | Brother Pe Actuator Mp B 2 | No | |
| Bag | UE1688001 | Brother Pe Bag 1000X1000h | No | |
| LM9001001 | Brother Pe Eg Sensor Assy | No | ||
| Holder | LS1030001 | Brother Pf Roller Holder Assy | No | |
| Solenoid | LP2354001 | Brother Pf Solenoid Assy, | No | |
| Sensor, Thermistor, Thermostat | LG2239001 | Brother Photo Interrupter, | No | |
| Drum, Tub | LP2460001 | Brother Polystyrene Foam Pad Drum | No | |
| Pad | LP2456001 | Brother Polystyrene Form Pad Assy | No | |
| Roller | LP2159001 | Brother Pressure Roller | No | |
| Roller | UF9009001 | Brother Pressure Roller | No | |
| Spring | LU7078001 | Brother Pressure Spring | No | |
| Rubber | LS7272001 | Brother Printed Rubber Key, | No | |
| Rubber | LS7313001 | Brother Printed Rubber Key, Dcp8080dn/dcp8085dn | No | |
| LM5124001 | Brother Process Cover Stopper | No | ||
| Circuit Board | LV0292001 | Brother Ps Pcb Unit, Dcp8080dn/dcp8085dn/mfc8480dn/mfc8680dn/ | No | |
| Circuit Board | LV0328001 | Brother Ps Pcb Unit, Dcp8080dn/dcp8085dn/mfc8480dn/mfc8880dn/ | No | |
| UL9037001 | Brother Pt Sensor Holder | No | ||
| LF9637001 | Brother Pulley Assy | No | ||
| Guide | LS7449001 | Brother Quick Setup Guide, Dcp8080dn/dcp8085dn For Us/can (English) | No | |
| Guide | LX2021001 | Brother Quick Setup Guide, Mfc8480dn/mfc8680dn For Us/can (English) | No | |
| Circuit Board | RLT0754001 | Brother Rb Main Pcb Mfc8480dnadd Returntag | No | |
| Deflector & Chute | LU7126001 | Brother Rear Chute Assy | No | |
| LM5150001 | Brother Regist Actuator Front | No | ||
| LM5151001 | Brother Regist Actuator Rear | No | ||
| LM5152001 | Brother Regist Actuator Spring | No | ||
| LM5058001 | Brother Register Solenoid Assy | No | ||
| LJ9942001 | Brother Relay Rear Pcb Assy | No | ||
| Holder | LU7179001 | Brother Roller Holder Assy | No | |
| Holder | LU7338001 | Brother Roller Holder Sp Assy | No | |
| LJ7403001 | Brother Rubber Foot | No | ||
| LF9685001 | Brother Rubber Holder | No | ||
| Solenoid | LP2353001 | Brother S/b Solenoid Assy, | No | |
| Deflector & Chute | LF9751001 | Brother Sb Chute Assy, | No | |
| Roller | LF9749001 | Brother Sb Roller Assy, | No | |
| Pump, Motor | LE8632001 | Brother Scanning Motor Fb | No | |
| 0A4300606 | Brother Screw, Pan (S/p Washer) M3x6 | No | ||
| LM5237001 | Brother Separation Pad Assy | No | ||
| Pad | LM6752001 | Brother Separation Pad Assy Mp | No | |
| LM5239001 | Brother Separation Pad Spring | No | ||
| Rubber | LF9686001 | Brother Separation Rubber | No | |
| LF9684001 | Brother Separation Spring | No | ||
| LL0696001 | Brother Sheet 70X110 | No | ||
| LF9625001 | Brother Side Cover L, Gray(1736) | No | ||
| LF9624001 | Brother Side Cover R, Gray(1736) | No | ||
| LG6529001 | Brother Speaker Assy | No | ||
| LE1513001 | Brother Spring Plate Adf Front A Assy | No | ||
| LU7039001 | Brother Support Flap 1 | No | ||
| LU7118001 | Brother Support Flap 2 | No | ||
| Deflector & Chute | LF9850001 | Brother Sx Chute, Dcp8080dn/mfc8480dn | No | |
| LM5067001 | Brother T1 Solenoid Assy | No | ||
| 085311016 | Brother Taptite Bind B M3x10 | No | ||
| 085310816 | Brother Taptite Bind B M3x8 | No | ||
| Cup | 087310816 | Brother Taptite Cup B M3x8 | No | |
| 087411016 | Brother Taptite Cup B M4x10 | No | ||
| Cup | 087321217 | Brother Taptite Cup S M3x12 | No | |
| Cup | LM5867001 | Brother Taptite Cup S M3x6 Sr | No | |
| UF5034001 | Brother Taptite, B 3X6 | No | ||
| 085411216 | Brother Taptite, Bind B M4x12 | No | ||
| Screw | 087311016 | Brother Taptite, Cup B M3x10 | No | |
| Cup | LP2320001 | Brother Taptite, Cup B M3x10 | No | |
| Cup | 087411216 | Brother Taptite, Cup B M4x12 | No | |
| Cup | 087412016 | Brother Taptite, Cup B M4x20 | No | |
| Cup | 087320616 | Brother Taptite, Cup S M3x6 | No | |
| Cup | LP2378001 | Brother Taptite, Cup S M3x8 Sr | No | |
| LG3077001 | Brother Telephone Line Cord, | No | ||
| UG3290001 | Brother Telephone Line Cord, Mfc8880dn/mfc8890dw For Arl/nz | No | ||
| Sensor, Thermistor, Thermostat | LG4518001 | Brother Thermistor Assy | No | |
| Circuit Board | LV0282001 | Brother Toner Led Pcb Assy | No | |
| LJ9935001 | Brother Toner Sensor Pcb Assy | No | ||
| LF9641001 | Brother Top Cover Assy | No | ||
| Tray, Support , Ice Maker Tray | LM5196005 | Brother Tray Mp Assy | No | |
| LF9666001 | Brother Upper Main Chute Assy | No | ||
| LJ9803001 | Brother Usb Cable | No | ||
| Circuit Board | LT0668001 | Brother Usb Host Pcb | No | |
| Guide | LS7435001 | Brother User's Guide, Dcp8080dn/dcp8085dn For Us/can | No | |
| Circuit Board | LT0963001 | Brother Wireless Pcb, Mfc8690dw/mfc8890dw | No |
Sign In
