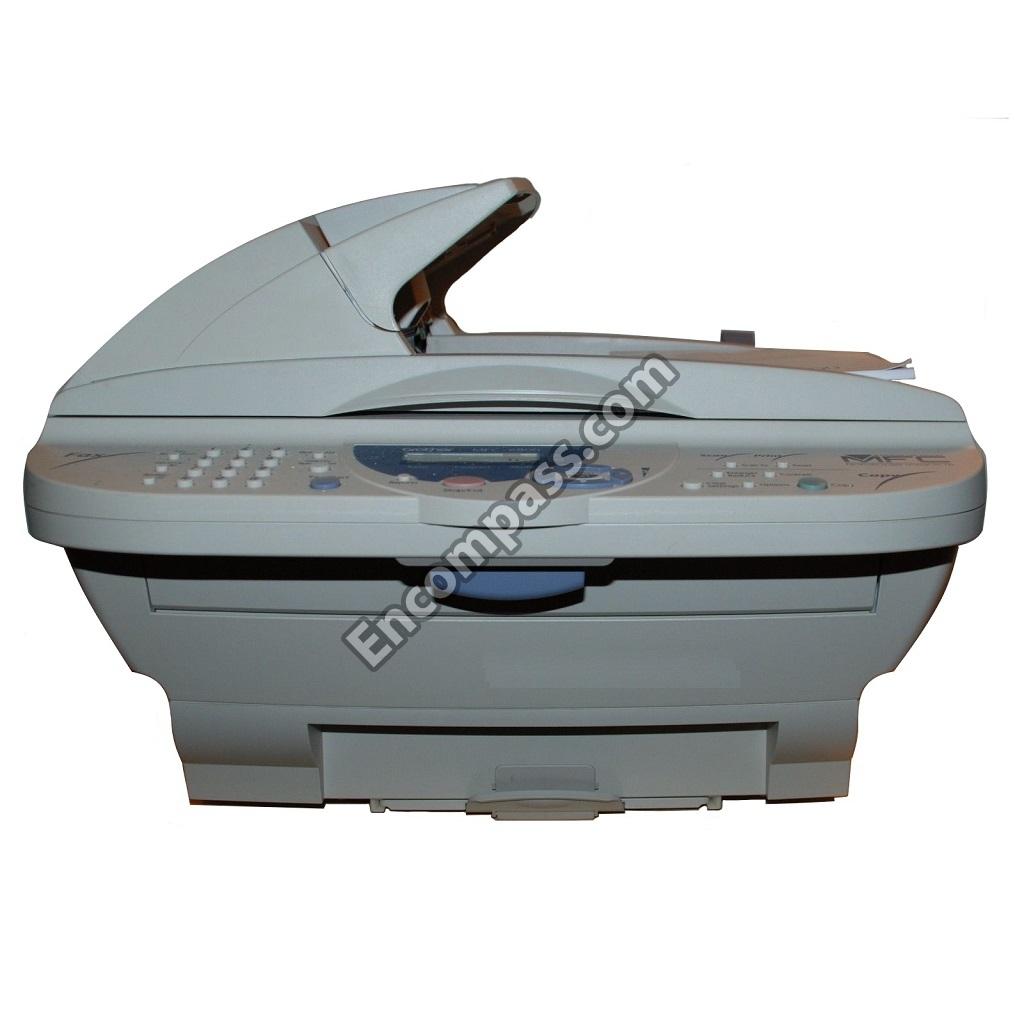

MFC6800 Brother 5-In-1 Monochrome Laser Multi-function Center (Fax/print/copy/scan/pc Fax) Replacement Parts
Manufacturer
Model Number
MFC6800
Description
5-In-1 Monochrome Laser Multi-function Center (Fax/print/copy/scan/pc Fax)
Parts List
| Category | Part Number | Description | Demand | Availability |
|---|---|---|---|---|
| Bag | LG4400001 | Brother Ac Cord Assy, Dcp1000/mfc6800 For Us/can/twn | No | |
| Cover,Cap | LE6237001 | Brother Adf Cover, Gray(1495) | No | |
| Pump, Motor | LE6214001 | Brother Adf Motor | No | |
| Pump, Motor | LG3219001 | Brother Adf Motor Sensor Harness Assy | No | |
| Lever | LE6330001 | Brother Adf Thickness Adjuster | No | |
| Tray, Support , Ice Maker Tray | LE6201001 | Brother Adf/document Tray Assy | No | |
| Brush | LE1876001 | Brother Anti-static Brush | No | |
| Brush | LE6221001 | Brother Anti-static Brush | No | |
| Brush | LJ5219001 | Brother Anti-static Brush | No | |
| LE1833001 | Brother Asf Assy, Gray(1495) | No | ||
| Bag | UL7932001 | Brother Bag 400X480 (For Toner/drum) | No | |
| Bag | LJ0763001 | Brother Bag, 1000X1000h | No | |
| Battery | LG3429001 | Brother Battery, Mfc9180 | No | |
| Belt, Pulley | LE7947001 | Brother Belt Stopper | No | |
| Cover,Cap | LE7019001 | Brother Black Film | No | |
| Cover,Cap | LE1877001 | Brother Board Access Cover | No | |
| Bush | LE6494001 | Brother Bushing | No | |
| Bearing | UF9949001 | Brother Bushing S (Separation Roller, Feed Roller) | No | |
| LE1985001 | Brother Carton Mfc6800 | No | ||
| Belt, Pulley | LE6353001 | Brother Ccd Drive Belt Assy | No | |
| Cables, PCB Cable | LE6351001 | Brother Ccd Flat Cable | No | |
| LF2492001 | Brother Ccd Unit | No | ||
| LE7004001 | Brother Cd-rom Assy, Dcp1000 For Us/twn | No | ||
| LE7578001 | Brother Cd-rom Assy, Mfc6800 For Us/can | No | ||
| Deflector & Chute | LE6205001 | Brother Chute Film | No | |
| UL6659001 | Brother Chute Film | No | ||
| Cleaner | LE7043001 | Brother Cleaner Assy | No | |
| Spring | LE7419001 | Brother Clutch Gear Spring | No | |
| Holder | UL6579001 | Brother Clutch Holder Spring | No | |
| Lever | UL6574000 | Brother Clutch Release Lever | No | |
| LE1999001 | Brother Control Panel Assy, Dcp1000 For Us | No | ||
| LE1974001 | Brother Control Panel Assy, Mfc6800 | No | ||
| Circuit Board | LG3250001 | Brother Control Panel Pcb Assy, Dcp1000/mfc6800 | No | |
| LE7001001 | Brother Control Panel, Dcp1000 For Us | No | ||
| LE1975001 | Brother Control Panel, Mfc6800 | No | ||
| Roller | LE6222001 | Brother Document Ejection Roller Assy | No | |
| Roller | LE6233001 | Brother Document Feed Roller Assy | No | |
| Actuator | LE6220001 | Brother Document Front Sensor Actuator | No | |
| Tray, Support , Ice Maker Tray | LF2521001 | Brother Document Guide Base | No | |
| LE6334001 | Brother Document Guide Clip | No | ||
| LE8834001 | Brother Document Pressure Bar | No | ||
| Actuator | LE6219001 | Brother Document Rear Sensor Actuator | No | |
| Circuit Board | LG3216001 | Brother Document Sensor Pcb Assy | No | |
| Label | LE6355001 | Brother Document Set Label | No | |
| Tray, Support , Ice Maker Tray | LE6250001 | Brother Document Support, Clear Purple(6342) | No | |
| Cover,Cap | LG3218001 | Brother Document Tray Open Sensor | No | |
| LE9437001 | Brother Document Tray Sub Assy | No | ||
| Roller | UH3323001 | Brother Eject Pinch Roller Assy | No | |
| Roller | UH3324001 | Brother Ejection Pressure Roller | No | |
| Circuit Board | LE1863001 | Brother El (Eraser Lamp) Board | No | |
| LE1807001 | Brother Electrode | No | ||
| LF2678001 | Brother Fan Motor Assy For Us/can | No | ||
| Scanner | LF2297001 | Brother Fb Scanner Unit (Sp) | No | |
| Bag | LE3602001 | Brother Ferrite Core Bag Assy, Dcp1000/mfc6800 | No | |
| LE7699001 | Brother Ferrite Core Bag Assy, Mfc9160/mfc9180 | No | ||
| UG3005000 | Brother Ferrite Core, 16X8x10 | No | ||
| Cover,Cap | LE1992001 | Brother Front Cover | No | |
| Hinge | LE6253001 | Brother Front Cover Connector | No | |
| Cover,Cap | LE1994001 | Brother Front Cover Guide | No | |
| Fuse, Thermal Fuse, Breaker | LE7196001 | Brother Fuser Assy | No | |
| Fuse, Thermal Fuse, Breaker | LE7343001 | Brother Fuser Assy (220V) | No | |
| Cover,Cap | LE6236001 | Brother Gear Cover, Gray(1495) | No | |
| Drive | LE1793001 | Brother Gear Drive Unit | No | |
| Wire | LG3275001 | Brother Grounding Wire | No | |
| LE7173001 | Brother Harness Cover | No | ||
| LG3196001 | Brother Heater Harness | No | ||
| Cleaner | LE7302001 | Brother Heater Roller Cleaner Felt | No | |
| Bearing | UH3178000 | Brother Heater Roller Shaft Holder | No | |
| Insulator | LE1865001 | Brother High-voltage Insulator Sheet | No | |
| LG3198001 | Brother High-voltage Power Flat Cable | No | ||
| LG5009001 | Brother High-voltage Power Supply Pcb Assy | No | ||
| Hinge | LE6245001 | Brother Hinge Base R | No | |
| Hinge | LE6238001 | Brother Hinge L | No | |
| LE8515001 | Brother Key, Copy, Green(5159) | No | ||
| LE6168001 | Brother Key, Cursor L, Purple(6255) | No | ||
| LE6169001 | Brother Key, Cursor S, Purple(6255) | No | ||
| LE7276001 | Brother Key, Cylinder 6, Gray(1495), Dcp1000/mfc9160 | No | ||
| LE6171001 | Brother Key, Cylinder9.5, Gray(1495) | No | ||
| LE6079001 | Brother Key, Menu | No | ||
| LJ4285004 | Brother Key, Start, Purple(6255), Mfc6800/mfc9180 | No | ||
| LJ4284001 | Brother Key, Ten, Gray(1495), Dcp1000/mfc9160 | No | ||
| LE3431001 | Brother Key, Ten, Gray(1495), Mfc6800/mfc9180 | No | ||
| Label | UL6740001 | Brother Laser Caution Label For Us/can/arl/nz/asa | No | |
| Scanner | LE7197001 | Brother Laser Unit(sp) | No | |
| LE7003001 | Brother Lcd Sheet, Dcp1000 For Us | No | ||
| LE1977001 | Brother Lcd Sheet, Mfc6800 | No | ||
| UG4552000 | Brother Lcd, Dcp1000/mfc6800 | No | ||
| LJ8529001 | Brother Lcd, Mfc9160/mfc9180 | No | ||
| Spring | LE6264001 | Brother Lever Spring | No | |
| LG5119001 | Brother Lg5119001 Ps Assy Mfc6800 | No | ||
| LG5639001 | Brother Lg5639001 Key Fpc Mfc6800 | No | ||
| Plate | UH3182000 | Brother Lock Plate | No | |
| Plate | LE7278001 | Brother Logo Plate, Dcp1000 For Us | No | |
| LG3195001 | Brother Low-voltage Power Harness | No | ||
| LG3481001 | Brother Low-voltage Power Supply Pcb Assy, | No | ||
| Hinge | LS7497001 | Brother Ls7497001 Hinge Base R Mfc6800 | No | |
| Cover,Cap | LE1786001 | Brother Main Cover, Gray(1495) | No | |
| Pump, Motor | LE1806001 | Brother Main Motor Assy | No | |
| Circuit Board | LG3277001 | Brother Main Pcb Assy, Dcp1000 | No | |
| Circuit Board | LG3264001 | Brother Main Pcb Assy, Mfc6800 | No | |
| LG3442001 | Brother Main Pcb Assy, Mfc9180 | No | ||
| Circuit Board | LG3279001 | Brother Main-fan Pcb Assy | No | |
| Jack | LE1253001 | Brother Modular Jack Film, Mfc6800/mfc9180 | No | |
| Circuit Board | LG3252001 | Brother Ncu Pcb Assy, Mfc6800 For Us | No | |
| Guide | LE7007001 | Brother Owner's Manual Assy, Dcp1000 | No | |
| Guide | LE7008001 | Brother Owner's Manual, Dcp1000 | No | |
| Guide | LE1984001 | Brother Owner's Manual, Mfc6800 For Us/can(english) | No | |
| Panel | LG3233001 | Brother Panel Harness | No | |
| Actuator | LE1874001 | Brother Paper Ejection Sensor Actuator | No | |
| Roller | UL6654001 | Brother Paper Feed Roller | No | |
| Solenoid | LE7015001 | Brother Paper Feed Solenoid Assy | No | |
| Roller | LE1945001 | Brother Paper Pull-in Roller | No | |
| Stopper | LJ5599001 | Brother Paper Stopper | No | |
| Tray, Support , Ice Maker Tray | LE1871001 | Brother Paper Sub Tray | No | |
| UU2080008 | Brother Paper Support, Clear Purple(6342) | No | ||
| Tray, Support , Ice Maker Tray | LE1870001 | Brother Paper Tray | No | |
| Holder | LE1872001 | Brother Paper Tray Holder | No | |
| Cables, PCB Cable | UG4558001 | Brother Parallel I/f Cable, Mfc9160/mfc9180 | No | |
| Bush | LF4230001 | Brother Pawled Bushing L | No | |
| Bearing | UF0026001 | Brother Pawled Bushing R | No | |
| LE7714001 | Brother Pe Sheet, 280X500 | No | ||
| LE7467001 | Brother Pe Sheet, 306X450 (For Scanner Glass) | No | ||
| Roller | UL6244002 | Brother Pinch Roller | No | |
| LE6206001 | Brother Pinch Roller Spring | No | ||
| Spring | UL6682001 | Brother Pinch Spring | No | |
| Plastic Attachment | LE2537001 | Brother Plastic Retaining Ring 5 | No | |
| Roller | UF9009001 | Brother Pressure Roller | No | |
| Shaft | LE2471001 | Brother Pressure Roller Shaft | No | |
| Spring | LE2472001 | Brother Pressure Roller Spring | No | |
| LE7898001 | Brother Protection Film | No | ||
| UU0456001 | Brother Protection Paper (For Adf) | No | ||
| Power Supply | LE7142001 | Brother Ps Shield Film | No | |
| Triac, Diode or Resistor | LE1845001 | Brother Registration Sensor Actuator | No | |
| Relay | LG3273001 | Brother Relay (Adf) Harness | No | |
| Relay | LG3274001 | Brother Relay (Ccd/panel) Harness | No | |
| Relay | LG3272001 | Brother Relay (Ccd/sen) Harness | No | |
| Circuit Board | LG3266001 | Brother Relay Pcb Assy | No | |
| Cover,Cap | LE7026001 | Brother Relay Pcb Cover | No | |
| Plate | LE1837001 | Brother Release Cam | No | |
| Label | LE7137001 | Brother Release Lever Label | No | |
| Spring | LE1835001 | Brother Release Lever Spring | No | |
| Lever | LE7047001 | Brother Release Lever, Purple(6255) | No | |
| 048050346 | Brother Retaining Ring E5 | No | ||
| Leg, Foot, Caster | LE7299001 | Brother Rubber Foot (Front) | No | |
| Scanner | LE1789001 | Brother Scanner Base, Gray(1495) | No | |
| Cover,Cap | LE1788001 | Brother Scanner Mount | No | |
| Lever | LE6263001 | Brother Scanner Open Lever, Purple(6255) | No | |
| Cover,Cap | LE2095001 | Brother Scanner Open Sensor Actuator | No | |
| Scanner | UU7043001 | Brother Scanner Seal Sponge | No | |
| UL6614001 | Brother Scanner Sheet 1 | No | ||
| UL6615001 | Brother Scanner Sheet 2 | No | ||
| Spring | LE7421001 | Brother Scanner Spring L | No | |
| Spring | LE7422001 | Brother Scanner Spring R | No | |
| Cover,Cap | LE6267001 | Brother Scanner Top Cover Assy | No | |
| 085411215 | Brother Screw, Bind B Tite 4X12 | No | ||
| Screw | UF6559001 | Brother Screw, Pan (Washer) M4x8db | No | |
| Washer | 0A4300605 | Brother Screw, Pan Washer M3x6 | No | |
| Screw | LJ4820001 | Brother Screw, Pan(washer) M2.6x6da | No | |
| Holder | LE1943001 | Brother Separation Pad Assy | No | |
| Roller | LE2037001 | Brother Separation Roller | No | |
| Gear, Wheel | LE6230001 | Brother Separation Roller Gear | No | |
| Holder | LE6345001 | Brother Separation Rubber Unit | No | |
| Lever | UL6573000 | Brother Solenoid Lever | No | |
| Spring | UL6575001 | Brother Solenoid Spring | No | |
| Speaker | LG3166001 | Brother Speaker | No | |
| LE6260001 | Brother Sponge | No | ||
| Spring | LE6218001 | Brother Spring | No | |
| Spring | UL5184001 | Brother Spring | No | |
| LE7011001 | Brother Start Card, Dcp1000 | No | ||
| LE1989001 | Brother Start Card, Mfc6800 For Us/can (English) | No | ||
| Foam | LE1986001 | Brother Styrofoam Assy Mfc6800 | No | |
| UF5034001 | Brother Taptite, B M3x6 | No | ||
| Screw | U04887001 | Brother Taptite, Bind B M2.6x8 | No | |
| 085311216 | Brother Taptite, Bind B M3x12 | No | ||
| 085411015 | Brother Taptite, Bind B M4x10 | No | ||
| 085411216 | Brother Taptite, Bind B M4x12 | No | ||
| Screw | 087311016 | Brother Taptite, Cup B M3x10 | No | |
| 087311415 | Brother Taptite, Cup B M3x14 | No | ||
| Cup | 087310615 | Brother Taptite, Cup B M3x6 | No | |
| Screw | 087310815 | Brother Taptite, Cup B M3x8 | No | |
| Cup | 087310816 | Brother Taptite, Cup B M3x8 | No | |
| Cup | 087411216 | Brother Taptite, Cup B M4x12 | No | |
| Screw | 087411415 | Brother Taptite, Cup B M4x14 | No | |
| 087411616 | Brother Taptite, Cup B M4x16 | No | ||
| Cup | 087321615 | Brother Taptite, Cup S M3x16 | No | |
| Cup | 087320616 | Brother Taptite, Cup S M3x6 | No | |
| 087311216 | Brother Tatptite, Cup B M3x12 | No | ||
| LG3077001 | Brother Telephone Line Cord, Mfc6800 For Us/can, | No | ||
| UG3290001 | Brother Telephone Line Cord, Mfc9180 For Nz/hk | No | ||
| UF8263001 | Brother Test Chart Tc-027 | No | ||
| Sensor, Thermistor, Thermostat | LE1849001 | Brother Thermister Assy | No | |
| Label | UL6741001 | Brother Toner Caution Label For Us/can/arl/nz/asa | No | |
| Circuit Board | LG3162001 | Brother Toner Sensor Pcb Assy | No | |
| Lamp | LE7133001 | Brother Tungsten Hologen Lamp, 230V For Arl/nz/asa/kor | No | |
| Lamp | LE1851001 | Brother Tungsten Hologen Lamp,115v For Us/can/twn | No | |
| LE6226001 | Brother Upper Adf Chute | No |
Sign In
