Manufacturer
Brother Replacement Parts

Model Number

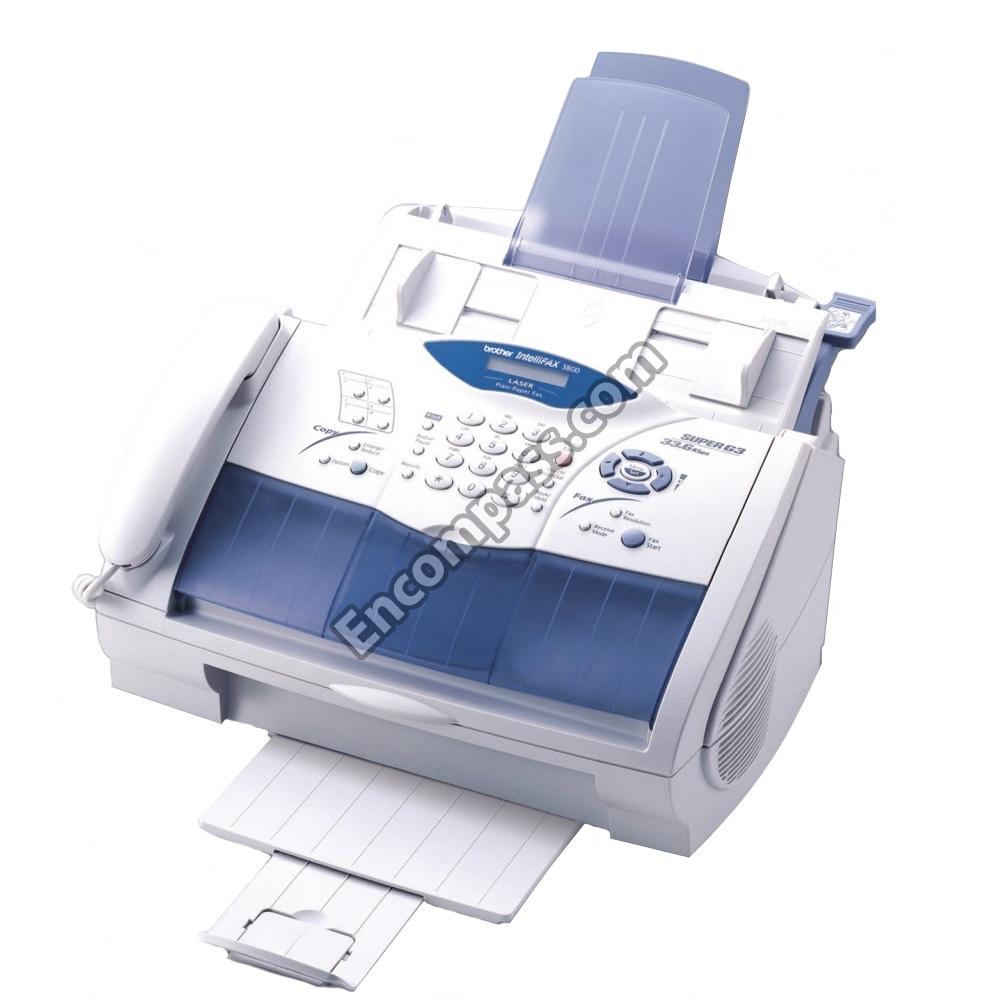

INTELLIFAX3800

Description
Fax Machines (Fax And Intellifax Series)

Parts List

CategoryPart NumberDescriptionDemandAvailability
ActuatorLE6176001
Brother Actuator FNo
ActuatorUF8167008
Brother Actuator HookNo
ActuatorLE6177001
Brother Actuator R Except For TwnNo
LabelLE5308001
Brother Address Label, Fax2800/fax2880/fax2900/fax3800,No
SpringUU7105001
Brother Adf Plate SpringNo
BrushLE1876001
Brother Anti-static BrushNo
BrushLJ5219001
Brother Anti-static BrushNo
BrushLE1071001
Brother Anti-static Brush 79MmNo
Fuse, Thermal Fuse, BreakerLE7130001
Brother Backlight Diffuser, Fax3800No
BagUL7932001
Brother Bag 400X480 (For Toner/drum)No
BagLJ5584001
Brother Bag, 700X800hNo
BatteryLG3429001
Brother Battery, Fax2900/fax2880/fax3800,No
Cover,CapLE7019001
Brother Black FilmNo
Cover,CapLE1877001
Brother Board Access Cover,No
ConnectorLF2327001
Brother Board Access Cover, Fax2800No
SleeveLE6325001
Brother Bushing LNo
SleeveLE6326001
Brother Bushing SNo
LE7578001
Brother Cdrom Assy, Mfc4800 For Us/can/arg/braNo
UL6659001
Brother Chute FilmNo
LG5007001
Brother Cis Harness For Fax2880No
SpringUU2028001
Brother Cis SpringNo
LG3157001
Brother Cis Unit Except For TwnNo
CleanerLE7043001
Brother Cleaner AssyNo
SpringLE7419001
Brother Clutch Gear SpringNo
HolderUL6579001
Brother Clutch Holder SpringNo
LeverUL6574000
Brother Clutch Release LeverNo
LE7170001
Brother Control Panel Assy, Fax3800, Gray(1495)No
PanelLE1953001
Brother Control Panel Assy, Mfc4800, Gray(1495)No
Cover,CapLE1921001
Brother Control Panel, Fax28002900/3800, Gray(1495)No
LE7774001
Brother Control Panel, Fax3800, Gray(1495)No
LE1836001
Brother Control Panel, Mfc4800, Gray(1495)No
LE1885001
Brother Document Base Assy,No
RollerLE7135001
Brother Document Ejection Roller AssyNo
RollerLE1816001
Brother Document Feed RollerNo
Gear, WheelLE1196001
Brother Document Feed/ejection Roller GearNo
LE6342001
Brother Document Pressure Bar Assy Except For TwnNo
SpringUU2057001
Brother Document Pressure Bar SpringNo
UU2080008
Brother Document Set Tray Assy, Clear Purple(6342)No
DriveLE1793001
Brother Drive UnitNo
RollerUH3323001
Brother Eject Pinch Roller AssyNo
RollerUH3324001
Brother Ejection Pressuer RollerNo
BearingUF9949001
Brother Ejection Roller BushingNo
Circuit BoardLE1863001
Brother El BoardNo
LE1807001
Brother ElectrodeNo
LF2678001
Brother Fan Motor Assy For Us/canNo
SpringLE8109001
Brother Feed Roller Grounding SpringNo
PlateUH3182000
Brother Feeder Electrode PlateNo
BagLE3602001
Brother Ferrite Core Bag Assy, Fax3800 And For Twn (Including 2 Cores)No
WireLG3207001
Brother Fg WireNo
Fuse, Thermal Fuse, BreakerLE7196001
Brother Fixing Unit 120 Assy(sp) For Us/can/braNo
Fuse, Thermal Fuse, BreakerLE7343001
Brother Fixing Unit 230 Assy(sp)No
LG6325001
Brother Fpc Yl4mfc BaseNo
LG6326001
Brother Fpc Yl4mfc KeyNo
SpringLE1961001
Brother Front Plate SpringNo
LG3768011
Brother Handset Curled Cord Assy, Gray(1495)No
HandsetUG3543011
Brother Handset Curled Cord Assy, Gray(1495)No
HolderLE1949001
Brother Handset HolderNo
HandsetLE5803011
Brother Handset Weight Assy, Mfc4800 For Bra(old),No
CleanerLE7302001
Brother Heat Roller Cleaner FeltNo
BearingUH3178000
Brother Heat Roller Shaft HolderNo
WasherUL8754001
Brother Heat Roller WasherNo
LG3196001
Brother Heater HarnessNo
InsulatorLE1865001
Brother High-voltage Insulator SheetNo
LG5009001
Brother High-voltage Power Supply Pcb AssyNo
Circuit BoardLG3202001
Brother Hook Pcb, Except For Fax3800 And TwnNo
Circuit BoardLG3425001
Brother Hook Pcb, Fax3800No
LG3198001
Brother Hv HarnessNo
LE6171002
Brother Key, Copy, Green(5159)No
LE6168001
Brother Key, Cursor L, Purple(6255)No
LE6169001
Brother Key, Cursor S, Purple(6255)No
LE7276001
Brother Key, Cylinder 6, Gray(1495)No
LE6079001
Brother Key, Menu, Except For Fax2880No
LJ4285004
Brother Key, Start, Purple(6255)No
LE6171004
Brother Key, Stop, Pink(2205)No
LE4073003
Brother Key, Ten, Gray(1495)No
LabelUL6740001
Brother Laser Caution Label, Except For Fax2880No
ScannerLE7197001
Brother Laser Scanner Assy(sp)No
LG5340001
Brother Lcd, Except For Fax3800No
LG3393001
Brother Lcd, Fax3800No
StopperLE1884001
Brother Link StopperNo
LG5118001
Brother Low-voltage Power Supply Pcb AssyNo
LG3478001
Brother Low-voltage Power Supply Pcb Assy (Excluding Ac Cord)No
LG5125001
Brother Low-voltage Power Supply Pcb Assy (Excluding Ac Cord)No
Circuit BoardLG5120001
Brother Low-voltage Power Supply Pcb Assy (Including Ac Cord)No
LG3195001
Brother Lv HarnessNo
Cover,CapLE1786001
Brother Main Cover, Gray(1495)No
Pump, MotorLE1806001
Brother Main Motor AssyNo
Circuit BoardLG3715001
Brother Main Pcb Assy, Fax2800 For Us/can (Includes Masked Rom)No
LG3390001
Brother Main Pcb Assy, Fax2850for Hk/asa/kor,No
Circuit BoardLG3422001
Brother Main Pcb Assy, Fax2900 For UsNo
Circuit BoardLG3426001
Brother Main Pcb Assy, Fax3800 For UsNo
Circuit BoardLG3178001
Brother Main Pcb Assy, Mfc4800 For Us/can/arg/bra(old)No
LE8302001
Brother Main Shield, Fax2800 For Us/canNo
LE1006001
Brother Modular Jack FilmNo
LG3192001
Brother Ncu HarnessNo
LG3190001
Brother Ncu Pcb Assy, Fax2800/fax2900/mfc4800 For UsNo
Circuit BoardLG3190002
Brother Ncu Pcb Assy, Fax2800/mfc4800No
LG3609011
Brother Ncu Pcb Assy, Fax3800 For UsNo
GuideLE1932001
Brother Owner's Manual Assy,No
GuideLE1958001
Brother Owner's Manual Assy,No
GuideLE1933001
Brother Owner's Manual,No
PanelLG3173001
Brother Panel Pcb Assy , Except For Fax3800 And TwnNo
Circuit BoardLG3394001
Brother Panel Pcb Assy ,Fax3800No
Cover,CapLE1925001
Brother Panel Rear CoverNo
PanelLE1928001
Brother Panel Sheet, Fax2800No
PanelLE7164001
Brother Panel Sheet, Fax2900No
PanelLE7171001
Brother Panel Sheet, Fax3800No
PanelLE1954001
Brother Panel Sheet, Mfc4800No
ActuatorLE1874001
Brother Paper Ejection Sensor ActuatorNo
Tray, Support , Ice Maker TrayLE1871001
Brother Paper Ejection Sub TrayNo
Tray, Support , Ice Maker TrayLE1870001
Brother Paper Ejection TrayNo
HolderLE1872001
Brother Paper Ejection Tray HolderNo
LE1833001
Brother Paper Feed Base Assy,No
RollerUL6654001
Brother Paper Feed RollerNo
SolenoidLE7015001
Brother Paper Feed Solenoid AssyNo
LeverUL6573000
Brother Paper Pick-up Solenoid LeverNo
RollerLE1945001
Brother Paper Pull-in RollerNo
StopperLJ5599001
Brother Paper StopperNo
Cables, PCB CableUG4558001
Brother Parallel Interface Cable With Core,No
BushLF4230001
Brother Pawled Bushing LNo
BearingUF0026001
Brother Pawled Bushing RNo
SpringLE1927001
Brother Pinch Roller SpringNo
SpringUL6682001
Brother Pinch SpringNo
RollerUF9009001
Brother Pressure RollerNo
ShaftLE2471001
Brother Pressure Roller ShaftNo
SpringLE2472001
Brother Pressure Roller SpringNo
LE7898001
Brother Protection FilmNo
UU0456001
Brother Protection Paper (Adf)No
LE7033001
Brother Protection Sheet (Panel)No
Triac, Diode or ResistorLE1845001
Brother Registration Sensor ActuatorNo
Circuit BoardLG3168001
Brother Registration Sensor Pcb AssyNo
PlateLE1837001
Brother Release CamNo
LabelLE7136001
Brother Release Lever LabelNo
SpringLE1835001
Brother Release Lever SpringNo
LeverLE1834001
Brother Release Lever, Purple(6255)No
Leg, Foot, CasterLE7299001
Brother Rubber Foot (Front)No
Pump, MotorLE7039001
Brother Scanner MotorNo
Pump, MotorLG3171001
Brother Scanner Motor HarnessNo
ScannerUU7043001
Brother Scanner Seal SpongeNo
UL6614001
Brother Scanner Sheet 1No
UL6615001
Brother Scanner Sheet 2No
SpringLE1968001
Brother Scanning Ground SpringNo
085411215
Brother Screw, Bind B Tite 4X12No
Washer0A4300605
Brother Screw, Pan (S/p Washer) M3x6No
ScrewUF6559001
Brother Screw, Pan (Washer) M4x8dbNo
ScrewLJ4820001
Brother Screw, Pan(washer) M2.6x6daNo
HolderLE1943001
Brother Separation Pad AssyNo
SpringUL5184001
Brother Separation Pad SpringNo
RollerUF5511001
Brother Separation RollerNo
UU7364001
Brother Separation Roller Film Except For TwnNo
Gear, WheelLE1814001
Brother Separation Roller GearNo
Cover,CapLE1889001
Brother Side Cover LNo
Cover,CapLE1890001
Brother Side Cover RNo
SpringUL6575001
Brother Solenoid Lever Return SpringNo
SpeakerLG3166001
Brother Speaker UnitNo
LE1941001
Brother Start Card, Fax2800/fax2900/fax3800 For UsNo
LE1960001
Brother Start Card, Mfc4800 For Us/bra(old)No
LE1938001
Brother Styrofoam AssyNo
ScrewU04887001
Brother Taptite, Bind B M2.6x8No
085311216
Brother Taptite, Bind B M3x12No
085411015
Brother Taptite, Bind B M4x10No
Screw087311016
Brother Taptite, Cup B M3x10No
087311415
Brother Taptite, Cup B M3x14No
Screw087310815
Brother Taptite, Cup B M3x8No
Screw087411415
Brother Taptite, Cup B M4x14No
087411616
Brother Taptite, Cup B M4x16No
Cup087321615
Brother Taptite, Cup S M3x16No
Cup087320616
Brother Taptite, Cup S M3x6,fax2800No
UF6116001
Brother Taptite, Pan B M3x6No
LE4199001
Brother Taptite, Pan B M4x6d10No
LG3077001
Brother Telephone Line Cord For AsaNo
UG3290001
Brother Telephone Line Cord For Nz/hkNo
Sensor, Thermistor, ThermostatLE1849001
Brother Thermister AssyNo
LabelUL6741001
Brother Toner Caution Label, Except For Fax2880No
Circuit BoardLG3162001
Brother Toner Sensor Pcb AssyNo
Cover,CapLE1866001
Brother Top Cover Sensor ActuatorNo
LampLE1851001
Brother Tungsten Hologen Lamp, 115VNo
LampLE7133001
Brother Tungsten Hologen Lamp, 230VNo
GuideLE8484001
Brother Xp Quick Set Up Guide,No
